BDH8205 全极微功耗霍尔开关
产品概述:
BDH8205 Hall-effect sensor is a temperature stable,stress-resistant, Low Tolerance of Sensitivity micro-power switch. Superior high-temperature performance is made possible through a dynamic offset cancellation that utilizes chopper-stabilization. This method reduces
the offset voltage normally caused by device over molding, temperature dependencies, and thermal stress.
BDH8205 is special made for low operation voltage,2.5V, to active the chip which is includes the following on a single silicon chip: voltage regulator, Hall voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, CMOS output driver. Advanced CMOS wafer fabrication processing is used to take advantage of low-voltage requirements, component matching, very low input-offset errors, and small component geometries. This device requires the presence of omni-polar magnetic fields for operation.
The package type is in a Green version has been verified by third party Lab.
特征:
CMOS Hall IC Technology
Strong RF noise protection
2.5 to 5.5V for battery-powered applications
Omni polar, output switches with absolute value of North or South pole from magnet
High Sensitivity for reed switch replacement applications
Multi Small Size option
Low sensitivity drift in crossing of Temp. range
Ultra Low power consumption at 5uA (Avg)
High ESD Protection, HBM> +/- 4KV( min )
Totem-pole output

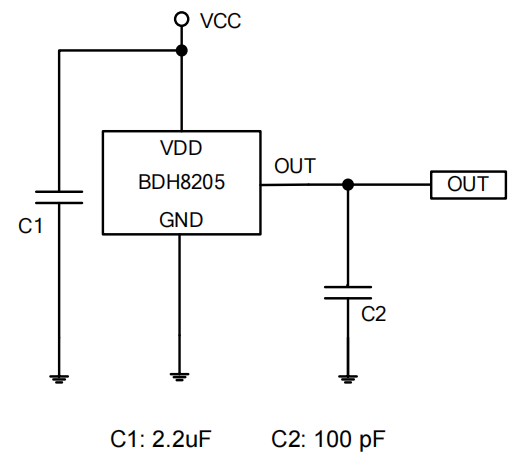

应用电路:
应用:
Solid state switch
Handheld Wireless Handset Awake Switch ( Flip Cell/PHS Phone/Note Book/Flip Video Set)
Lid close sensor for battery powered devices
Magnet proximity sensor for reed switch replacement in low duty cycle applications
Water Meter
Floating Meter
