BDH8182双极锁存霍尔开关
产品概述:
The BDH8182 is an integrated Hall-effect latched sensor designed for electronic commutation of brushless DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifiers the Hall voltage, and a Schmitt to provide switching hysteresis for noise rejection and open-collector output. An internal bandgap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range. A north pole of sufficient strength will turn the output ON. In the absence of a magnetic field, the output is OFF. This IC is available in TO-92S-3 and SOT-23-3 package.
特征:
On-chip Hall Sensor
Wide Operating Voltage Range: 3.5V to 24V
Internal Bandgap Regulator for Temperature Compensation
Maximum Output Sink Current: 25mA
Operating Temperature: -40°C to 125°C
ESD Rating: 3000V (Human Body Model) 300V (Machine Model)

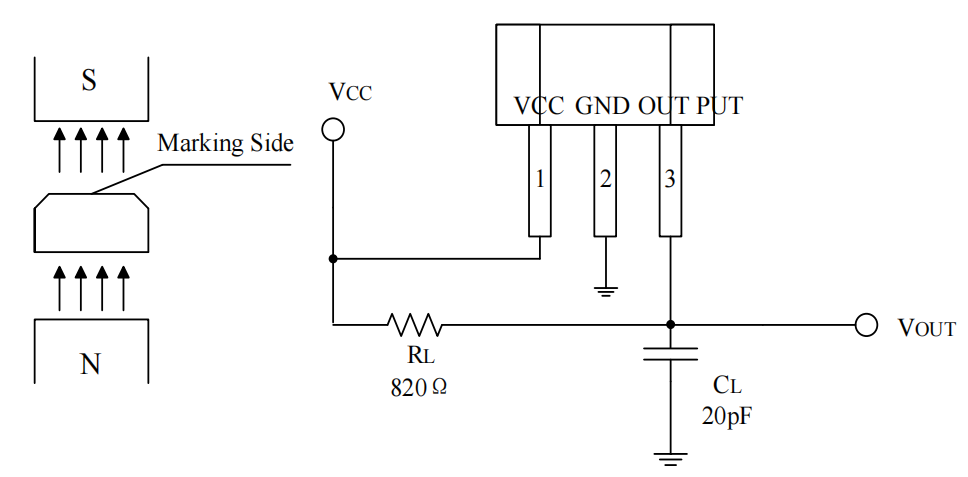

应用电路:
应用:
Brushless DC Moto
